Magnetic Gear System Notes

U. S. Patent No. 9,337,712
  Allen Storaasli


Gear action easily understood from videos on Allen Storaasli youtube channel

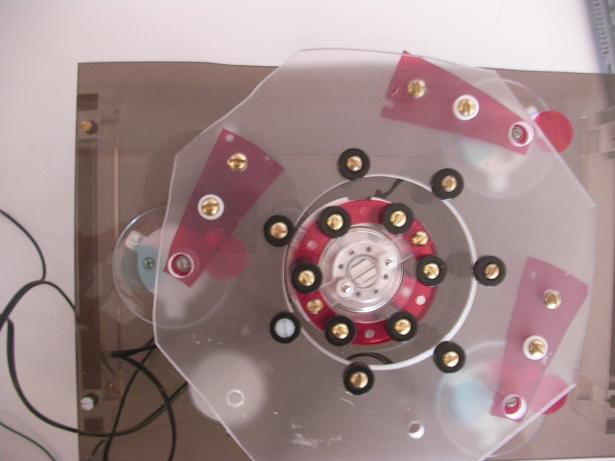

Magne-meshtm Type 1 System, single stage     6:1 reduction

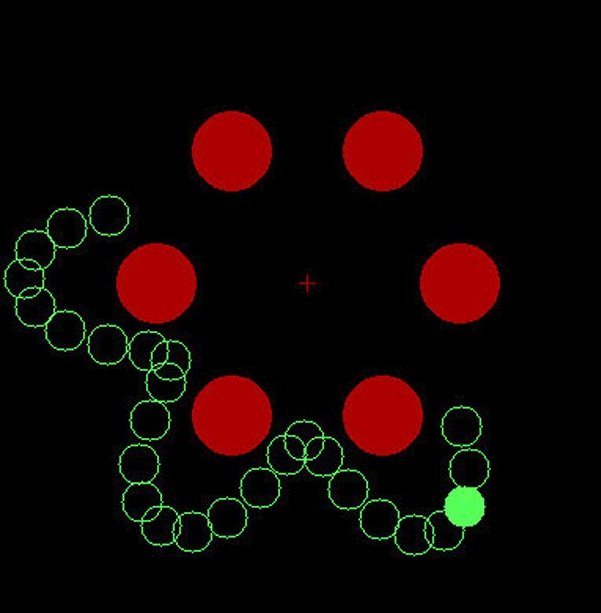

Linkages constrain orbital motion of the input.  This shows the path of one of the outer magnets (series of 7)  relative to the moving set of 6 shaft magnets.

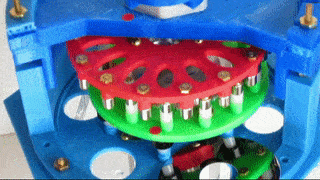

Magne-meshtm Type 2 System    Prototype is 6:1

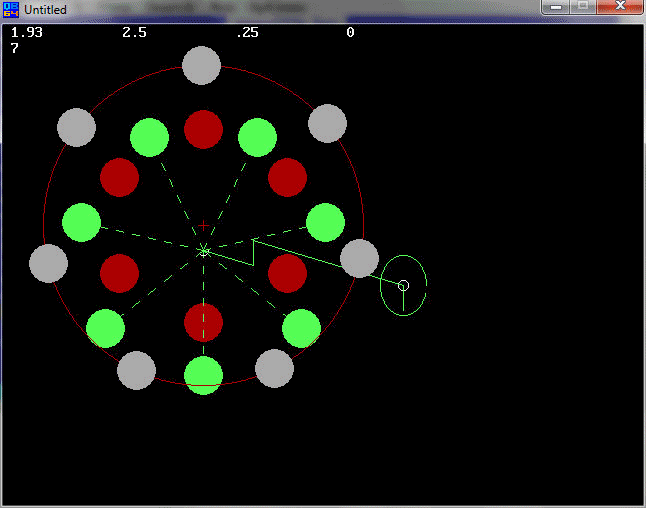

Orbital motion. Rotation of input (green) set is now constrained in absolute rotation by fixed (gray) stationary magnet set.

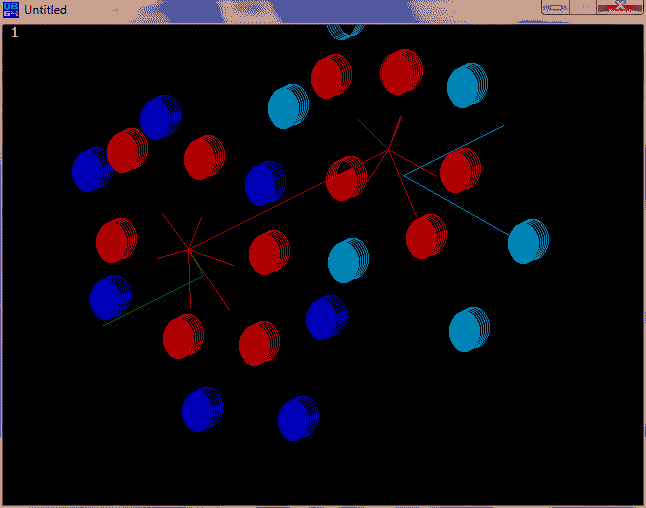

Magne-meshtm Type 3 System, Compound       35:1 reduction
